Package Contents
![]() |
---|
UniFi WiFi BaseStation XG |
![]() |
---|
Adjustment Bracket |
![]() |
---|
Pole Clamp |
![]() |
---|
Carriage Bolts (Qty. 4) |
![]() |
---|
Flange Nuts (Qty. 4) |
![]() |
---|
Lag Screws (Qty. 4) |
![]() |
---|
Gigabit PoE (50V, 1.2A) |
![]() |
---|
Power Cord |
Installation Requirements
- 13 mm wrench
- Category 5 (or above) UTP cable for indoor installations
|
IMPORTANT: The UWB-XG requires the UniFi Network Application v5.7 or higher, available at: |
---|
Outdoor Installation Requirements
- Shielded Category 5 (or above) cabling should be used for all outdoor wired Ethernet connections and should be grounded through the AC ground of the PoE.
We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit: ui.com/toughcable
System Requirements
- Linux, Mac OS X, or Microsoft Windows 7/8/10
- Java Runtime Environment 1.8 or above recommended
- Web Browser: Google Chrome (Other browsers may have limited functionality.)
- UniFi Network Application v5.7 or newer (available at: ui.com/download/unifi)
Hardware Overview
LED
Ports
![]() 10 GbE |
||
---|---|---|
The 10 GbE port is a 1/10 Gbps Ethernet port used to connect to the LAN and DHCP server. It can also be used to connect the power.
|
||
![]() 1 GbE |
||
The 1 GbE port is a 10/100/1000 Ethernet port used for bridging. It can also be used to connect the power. |
||
![]() Reset |
||
The Reset button serves two functions for the UWB-XG:
|
VESA Mounting
If you choose to use your own mount, remove the four M4 x 10 screws from the back of the UWB-XG and detach the pre-installed mount.
Hardware Installation

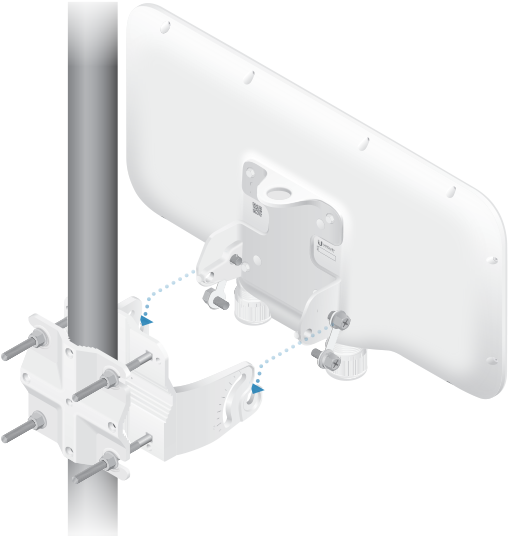

Pole Mount
- Proceed to Connecting Ethernet.
Wall Mount
To mount the UWB-XG on a wall or other sturdy flat surface, securely attach the Adjustment Bracket to the wall using the four Lag Screws.
|
Note: The Adjustment Bracket must attach to a hard surface or other stable structure. |
---|
- Proceed to Connecting Ethernet.

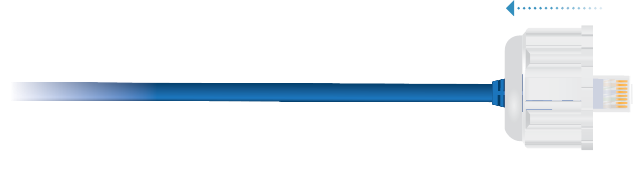

Connecting Ethernet
|
Note: If you are using TOUGHCable, we recommend attaching the TOUGHCable Connector(s) after you insert the cable(s) into the cable gland(s). |
---|
The cable gland is comprised of the following components:
- Repeat steps 1-14 to connect an Ethernet cable to the 1 GbE port if one of the following conditions applies:
- You will use the 1 GbE port for bridging.
- You will use the 1 GbE port for 802.3bt PoE.
- You will use the included Gigabit PoE adapter to power the UWB-XG.
|
Note: By default, the UWB-XG is set to 15 dBi for its small-cell gain. To switch to its large-cell gain of 10 dBi, use the UniFi Network Application. |
---|
Connecting Power
|
IMPORTANT: Using the 10GbE port requires enabling flow control on the upstream switch port’s configuration for maximum performance. |
---|
OR
Specifications
UWB-XG |
|
Dimensions (without Mount) |
471.1 x 257.5 x 94.3 mm (18.55 x 10.14 x 3.713") |
---|---|
Weight (without Mount) |
3.2 kg (7.055 lb) |
Networking Interface |
(1) 10/100/1000 RJ45 Ethernet Port (1) 1/10 Gbps ICM Ethernet Port |
Button |
Reset |
LED |
RGB, Application-Controllable |
Power Method |
802.3bt PoE |
Power Supply |
50VDC, 1.2A Gigabit PoE |
Max. Power Consumption |
31W |
Supported Voltage Range |
44-57VDC |
Max. TX Power |
25 dBm |
MIMO |
(3) 4 x 4 |
Operating Frequency |
5 GHz |
Antenna |
Integrated Dual-Mode Antenna Array |
Antenna Gain |
|
Small Cell | 15 dBi |
Large Cell | 10 dBi |
Antenna Beamwidth |
|
Small Cell | 50° |
Large Cell | 90° |
Wi-Fi Standards |
802.11 a/n/ac/ac-wave2 |
Wireless Security |
WEP, WPA-PSK, |
Mounting |
VESA-Compatible Mount Pole/Wall (Brackets Included) |
Operating Temperature |
-40 to 70° C (-40 to 158° F) |
Operating Humidity |
5 to 95% Noncondensing |
Weatherproofing |
IP67 |
Certifications |
CE, FCC, IC |
Safety Notices
- Read, follow, and keep these instructions.
- Heed all warnings.
- Only use attachments/accessories specified by the manufacturer.
WARNING: Do not use this product in location that can be submerged by water. |
WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning. |
Electrical Safety Information
- Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.
- There are no operator serviceable parts inside this equipment. Service should be provided only by a qualified service technician.
- This equipment is provided with a detachable power cord which has an integral safety ground wire intended for connection to a grounded safety outlet.
- Do not substitute the power cord with one that is not the provided approved type. Never use an adapter plug to connect to a 2-wire outlet as this will defeat the continuity of the grounding wire.
- The equipment requires the use of the ground wire as a part of the safety certification, modification or misuse can provide a shock hazard that can result in serious injury or death.
- Contact a qualified electrician or the manufacturer if there are questions about the installation prior to connecting the equipment.
- Protective earthing is provided by Listed AC adapter. Building installation shall provide appropriate short-circuit backup protection.
- Protective bonding must be installed in accordance with local national wiring rules and regulations.
Limited Warranty
The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions.
Compliance
FCC
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions.
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operations of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
This radio transmitter (FCC ID: SWX-UAPSTMXG, FCC ID: SWX-M445GL, FCC ID: SWX-M445GH, and FCC ID: SWX-M11DB) has been approved by FCC.
ISED Canada
CAN ICES-3(A)/NMB-3(A)
This device complies with ISED Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
- This device may not cause interference, and
- This device must accept any interference, including interference that may cause undesired operation of the device.
This radio transmitter (IC: 6545A-UAPSTMXG, IC: 6545A-M445GL, IC: 6545A-M445GH, and IC: 6545A-M11DB) has been approved by ISED Canada.
The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems.
CAN ICES-3(A)/NMB-3(A)
Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
- l’appareil ne doit pas produire de brouillage;
- l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
Le présent émetteur radio (IC: 6545A-UAPSTMXG, IC: 6545A-M445GL, IC: 6545A-M445GH, and IC: 6545A-M11DB) ont été approuvé par ISDE Canada.
Les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux.
IMPORTANT NOTE
Radiation Exposure Statement
- This equipment complies with radiation exposure limits set forth for an uncontrolled environment.
- This equipment should be installed and operated with minimum distance 24 cm between the radiator and your body.
- This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
AVIS IMPORTANT
Déclaration sur l’exposition aux rayonnements
- Cet équipement est conforme aux limites prévues pour l’exposition aux rayonnements dans un environnement non contrôlé.
- Lors de l’installation et de la mise en fonctionnement de l’équipement, assurez-vous qu’il y ait une distance minimale de 24 cm entre l’élément rayonnant et vous.
- Cet émetteur ne doit être installé à proximité d’aucune autre antenne ni d’aucun autre émetteur, et ne doit être utilisé conjointement à aucun autre de ces appareils.
Australia and New Zealand
Warning: This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference. |
Brazil
Nota: Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar interferência em sistemas devidamente autorizados. |
CE Marking
CE marking on this product represents the product is in compliance with all directives that are applicable to it.
![]() | Country List | |||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||
BFWA (Broadband Fixed Wireless Access) members noted in blue |
Note: This device meets Max. TX power limit per ETSI regulations. |
The following apply to products that operate in the 5 GHz frequency range:
Note: This device is restricted to indoor use only when operating in the 5150 - 5350 MHz frequency range within all member states. |
Note: All countries listed may operate at 30 dBm. BFWA member states may operate at 36 dBm. |
Note: Operation in the 5.8 GHz frequency band is prohibited in BFWA member states. Other countries listed may use the 5.8 GHz frequency band. |
